BOSS
ME-50
Guitar Multiple Effects (guitar multi pedal)
No Nonsense. Just Killer Tone.

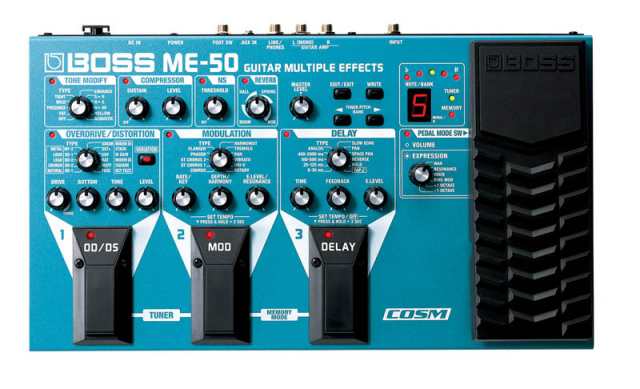

The ME-50 Guitar Multiple Effects is a floor-based multi-effects processor built with the ruggedness and simplicity of a stompbox. Designed to work with your amplifier, the ME-50 focuses on killer multi-effects (like COSM® overdrive and distortion) rather than amp modeling. And dialing in your tone is easy, thanks to dedicated knobs for each effect section, three footswitches and a built-in expression pedal. So if you want great-sounding effects without all the menu surfing, the ME-50 is everything you need.
- Floor-based multi-effects processor with BOSS' most intuitive interface ever
- 30 Preset Patches including delay, modulation, reverb, compressor and more
- Killer COSM overdrive/distortion effects including
- Dedicated knobs for each effect section - no menus to navigate!
- Tone Modify function offers Preset EQ settings for quick tone editing
- 3 footswitches for switching effects on and off with a single stomp
- Onboard expression pedal pre-routed to 6 modulation options or volume
- Rugged metal case with clear panel layout
Works Just Like Your Favorite Pedals
A multi-effects processor without a menu-driven LCD? Leave it to BOSS to design the most intuitive multi-effects processor ever. With simple knob-based control over each effect section, the ME-50 makes dialing in your tone easier than ever. And when you want to kick in an effect, just step on one of the footswitches. Think of it as a pedalboard full of stompboxes, just without all the individual pedals.
Superb Overdrive/Distortion Effects
The ME-50 boasts a range of superb COSM® overdrive and distortion modes - perfect for use on stage with an amp. Derived from the popular OD-20 Drive Zone, these are some of the crunchiest, tastiest overdriven sounds you can imagine. There's even a “Square” effect for cool synth-type sounds. Of course, the ME-50 also has plenty of other effects like compression, analog delay, flanger, phaser, tremolo, Harmonist, Uni-V and a wicked new Rotary effect.
Easy Assignable Expression Pedal
Having an assignable expression pedal is great, but not if you have to dig through menus just to select the effect you want to control. The ME-50 fixes all that with a simple Pedal Mode switch and knob. First, select whether you want to use the pedal for volume or expression. If you choose expression, you can then select one of six preset assignments via the dedicated knob: wah, resonance, voice, ring mod and octave up or down.
Memory Function for Live Performance
The ME-50's Memory function makes changing Patches quick and easy. Once enabled, the three footswitches become Patch selectors for switching between three programs within one of the ME-50's ten memory banks. To switch banks, just press the Bank Up/Down buttons or use an optional footswitch. And with the ME-50's convenient tuner function, keeping your guitar in tune is easy.
SPECIFICATIONS
AD Conversion:
24-bit + AF method*
DA Conversion:
24-bit
Sampling Frequency:
44.1 kHz
Patches:
30 (user)
Effects:
Tone Modify,
Compressor,
Overdrive/Distortion,
Chorus,
Phaser,
Flanger,
Harmonist,
Tremolo,
Pan,
Vibrato,
UNI-V,
Rotary,
Delay,
Reverb,
Noise Suppressor
[Effects for Expression Pedal]:
Foot Volume,
Wah,
Resonance,
Voice,
Ring Modulator,
Bend (+1 OCTAVE, -1 OCTAVE)
Nominal Input Level INPUT:
-10 dBu, AUX IN: -10 dBu
Input Impedance INPUT:
1 M ohms, AUX IN: 100 k ohms
Nominal Output Level:
-10 dBu
Output Impedance:
2 k ohms
Display:
7 segments, 1 character LED
Jacks:
INPUT jack,
GUITAR AMP jacks L (MONO) /R,
AUX IN jack (Stereo Mini type),
PHONES/LINE OUT jack,
AC Adaptor jack
Power Supply:
DC9V: Dry battery (R6/LR6 (AA) type) x 6,
AC Adaptor (PSA series: Optional)
Current Draw:
120 mA
* Expected battery life under continuous use:
Carbon: 3.5 hours,
Alkaline: 12 hours.
These figures will vary depending on the actual conditions of use.
Accessories Owner's manual:
Dry Battery (Alkaline: LR6 (AA) type) x 6,
Roland Service (Information Sheet)
Options:
AC Adaptor: BOSS PSA series,
Foot Switch: BOSS FS-5U
Size and Weight (incl. batteries):
Width 384 mm 15-1/8 inches
Depth 225 mm 8-7/8 inches
Height 102 mm 4-1/16 inches
Weight 3.2 kg, 7 lbs.
* 0 dBu = 0.775 Vrms
* AF method (Adaptive Focus method)
This is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.
